Now in Stock: PMXB360ENEA | 80 V N-Channel Trench MOSFET from NXP Semiconductors | Brand New, Fully Traceable, and Ready to Ship!

Ash Arya
Ash Arya

The PMXB360ENEA from NXP Semiconductors is an 80 V N-channel enhancement mode Trench MOSFET designed for compact switching and power management applications.

If you’re working on a design that needs reliable switching performance in a small package, this part is a dependable choice.

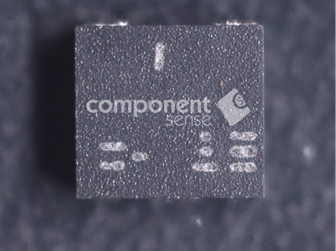

This device supports a drain-source voltage of 80 V and a continuous drain current of up to 1.1 A at 25 °C. It comes in a leadless, ultra-small DFN1010D-3 package measuring 1.1 x 1.0 x 0.37 mm, making it suitable for space-constrained automotive, industrial, and power-management designs.

Let’s take a closer look at this part:

Key Features of the PMXB360ENEA

It supports an 80 V drain-source voltage.

The PMXB360ENEA is designed for circuits that require reliable switching at higher voltage levels, with a maximum drain-source voltage rating of 80 V.

It delivers up to 1.1 A drain current.

This MOSFET supports a continuous drain current of up to 1.1 A at 25 °C, making it suitable for compact switching and control applications.

It uses N-channel Trench MOSFET technology.

The device is built using Trench MOSFET technology, supporting efficient switching performance in a compact surface-mounted package.

It is logic-level compatible.

Logic-level compatibility makes the PMXB360ENEA easier to drive from low-voltage control signals, which is useful in embedded, industrial, and automotive power management designs.

It offers low on-state resistance.

The PMXB360ENEA has a typical drain-source on-state resistance of 345 mΩ at VGS = 10 V and ID = 1.1 A, helping reduce conduction losses during operation.

It comes in an ultra-small DFN1010D-3 package.

The leadless DFN1010D-3 package measures just 1.1 x 1.0 x 0.37 mm, supporting compact PCB layouts where board space is limited.

It includes ESD protection above 2 kV HBM.

Built-in ESD protection helps improve handling robustness during manufacturing, assembly, and use.

It is AEC-Q101 qualified.

The PMXB360ENEA is qualified to the AEC-Q101 standard, making it suitable for automotive applications.

Applications of the PMXB360ENEA

This part is typically used in:

  • Relay drivers
  • Power management in automotive applications
  • Power management in industrial applications
  • LED drivers
  • DC-to-DC converters
  • Compact switching circuits
  • Embedded control systems
  • Space-constrained PCB designs
  • Automotive electronics
  • Industrial power control systems

FAQ: Why Source the BQ24150AYFFR from Component Sense?

Here are the most common questions procurement teams ask when sourcing the NXP Semiconductors PMXB360ENEA:

Are the components brand new and fully traceable?

Yes. All our stock is brand new, unused, and fully traceable back to tier-one OEM or EMS partners. We don’t deal in refurbished parts.

How does Component Sense ensure the authenticity of its components?

Every component undergoes our inspection process, developed in collaboration with leading Scottish universities. We guarantee form, fit, and function, and include a 12-month warranty.

Do you stock other components?

We hold over $1 billion worth of excess and obsolete inventory, updated regularly so you can source parts quickly and keep production moving.

Our inventory is available for browsing here.



How quickly can you ship the PMXB360ENEA?

This part ships from the UK, with same-day dispatch available. We also aim to provide quotes within an hour and maintain an on-time delivery rate of 95%+.



Does Component Sense support sustainable purchasing?

Yes. By redistributing excess components, we help reduce electronic waste and extend component lifespans. Also, we plant two trees to support global reforestation efforts.

Why should I source the PMXB360ENEA from Component Sense?

Because you get traceable, reliable components quickly, without the usual sourcing risk. When you need the PMXB360ENEA, we make the process seamless: we only carry trusted inventory, we guarantee fast delivery, and by purchasing brand-new excess parts, you are sourcing sustainably.
