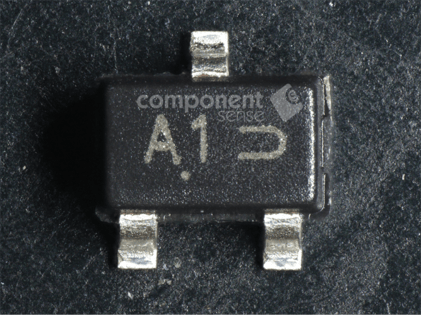

The SBAW56WT1G from ON Semiconductor is a compact, automotive-grade dual switching diode designed for high-speed signal routing, clamping, and protection in space-restricted circuit designs. With a common-anode configuration, fast switching behaviour, and low capacitance, it ensures clean, reliable signal performance across automotive, industrial, and consumer applications.
Qualified to AEC-Q101, this diode is engineered for long-term reliability in harsh operating environments. Its miniature SC-70/SOT-323 package reduces board footprint without compromising electrical performance, making it ideal for dense PCB layouts.
Let’s take a closer look at what makes the SBAW56WT1G a dependable choice for modern electronic systems.
Key Features of the SBAW56WT1G
AEC-Q101 Qualified
Meets automotive reliability standards for high-stress environments.
Dual Switching Diode (Common Anode)
Integrates two diodes in one compact package for efficient high-density design.
Fast Reverse Recovery (6 ns)
Supports high-frequency switching with minimal signal distortion.
Low Leakage & Capacitance
Typical capacitance of 2 pF, ensuring clean signal integrity.
Robust Electrical Ratings
Handles 70 V reverse voltage and 200 mA forward current with a 500 mA surge rating.
Wide Temperature Range (–55 °C to +150 °C)
Guaranteed performance across harsh automotive and industrial conditions.
Compact SC-70 / SOT-323 Package
Space-saving 2 mm × 2.1 mm footprint ideal for densely populated PCBs.
Applications of the SBAW56WT1G
- Automotive ECUs
- High-speed communication and logic circuits
- Voltage clamping and protection
- LED, sensor, and interface circuits
- Portable and battery-powered electronics
