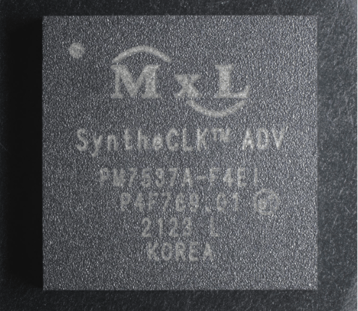

The PM7537A-F4EI from MaxLinear is a high-performance jitter attenuator and multi-output clock synthesizer designed for wireless networking and communication systems that demand precision timing. Built on MaxLinear’s proven SyntheCLK-ADV™ architecture, it delivers ultra-low jitter and superior phase noise performance across a wide frequency range.
Using a cascaded dual-PLL design, the PM7537A-F4EI filters noise on the input clock and generates multiple clean, high-frequency outputs. Its flexible architecture, with independent dividers and clock drivers, makes it ideal for synchronising data converters, transceivers, and FPGAs in next-generation communication systems.
Let’s take a closer look at what makes this timing IC a reliable choice for advanced infrastructure designs.
Key Features of the PM7537A-F4EI
Dual-PLL Jitter Attenuation
Cascaded Jitter Attenuator (PLL1) and Clock Synthesizer (PLL2) deliver precise timing with exceptional phase-noise performance.
Wide Frequency Range
Supports reference clock inputs from 30.72 MHz to 614.4 MHz and master clock outputs up to 3.2 GHz.
Flexible Input Configuration
Up to four independent reference clock inputs, supporting both single-ended and differential sources, with loss-of-signal (LOS) monitoring.
Fast Lock and Adaptive Control
Dynamic PLL settling enables fast startup and optimal jitter attenuation in changing conditions.
Multiple Buffered Outputs
Eighteen programmable clock dividers and drivers allow precise control of multiple synchronous clock domains.
Industrial Temperature Range
Operates reliably from –40 °C to +85 °C, suitable for wireless base stations and industrial environments.
Compact FCBGA144 Package (10 × 10 mm)
Delivers high functionality in a space-efficient form factor for dense PCB layouts.
Applications of the PM7537A-F4EI
The PM7537A-F4EI is ideal for precise clocking and timing in high-performance communication and industrial systems, including:
- Wireless base stations and broadband infrastructure
- RF synthesizers and high-speed data converters
- JESD204B-based system design
- Network timing and clock distribution modules
- FPGA and SoC-based systems requiring multiple clock domains
Why Choose Component Sense?
At Component Sense, we specialise in the fast, reliable, and sustainable supply of brand-new, fully traceable, and counterfeit-free electronic components, such as the PM7537A-F4EI. Here’s why procurement teams trust us worldwide:
- We manage over $1 billion worth of excess and obsolete (E&O) inventory, with regularly updated stock that enables you to fulfil BOMs quickly and minimise production downtime.
- Every component we supply is brand new, unused, and fully traceable to the original manufacturer. We work exclusively with trusted tier-one OEM and EMS partners who maintain the highest quality standards.
- Our inspection process, developed in partnership with leading Scottish universities, ensures that every part meets complete form, fit, and function requirements. To give you full confidence, a 12-month warranty covers all stock items.
- By redistributing E&O components, we help extend their lifecycle, reducing global electronic waste and promoting a circular supply chain.
- Additionally, this November, we’re planting 10 trees for every order, helping to offset the carbon impact for both buyers and sellers.
- Since 2001, we’ve delivered fast quotes (within one hour) and maintained a 95% on-time delivery rate, keeping your supply chain efficient and reliable.
When sourcing the PM7537A-F4EI, choose Component Sense for authenticity, speed, and sustainability.
