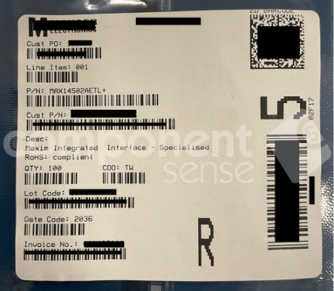

Now in Stock: MAX14502AETL+T | Maxim Integrated Hi-Speed USB-to-SD Card Reader with Bypass | Brand New, Fully Traceable, and Ready to Ship!

Ash Arya
Ash Arya

The MAX14502AETL+T from Maxim Integrated (now part of Analog Devices) is a Hi-Speed USB-to-SD card reader with bypass, built to bridge a USB host controller directly to SD and SDHC memory cards.

Engineers designing portable consumer electronics, such as cell phones, digital cameras, and handheld GPS units, can rely on this device to add SD card support without extra firmware overhead on the host processor.

The MAX14502AETL+T belongs to Maxim's MAX1450x family of USB-to-SD bridge controllers, alongside the MAX14500, MAX14501, and MAX14503.

Here's a closer look at what this device offers:

Key Features of the MAX14502AETL+T

Hi-Speed USB-to-SD Bridging

The MAX14502AETL+T provides an internal Hi-Speed USB SD card reader, handling the USB-to-SD protocol conversion on-chip. This eases host microprocessor overhead and removes the need for a dedicated software driver.

USB 2.0 Hi-Speed and Full-Speed Compliance

The device supports both USB 2.0 Hi-Speed and Full-Speed operation, giving designers flexibility across a range of host USB controllers and connection speeds.

SDHC Card Support

Beyond standard SD cards, the MAX14502AETL+T supports SDHC cards, extending the compatible storage capacity for applications that require larger storage capacity.

Flexible Control Modes

A simple control mode needs only a single GPIO line, while an I2C interface provides access to multiple configuration options. This lets engineers choose the level of control complexity that fits their design.

Compact TQFN-40 Package

The MAX14502AETL+T ships in a 40-pin TQFN package with an exposed pad, measuring 5mm by 5mm. This surface-mount footprint suits dense, space-constrained PCB layouts.

RoHS Compliant, Pb-Free Construction

The device is lead-free and RoHS compliant, meeting environmental compliance standards required in most modern electronics manufacturing.

Applications of the  MAX14502AETL+T:

This part is typically used in:

  • Cell phones
  • Digital still cameras
  • GPS navigation devices
  • MP3 and portable media players
  • PDAs and handheld computers
  • Point-of-sale terminals
  • Industrial handheld scanners
  • Embedded data-logging equipment
  • USB flash card readers and adapters
  • Portable medical devices
  • In-vehicle infotainment systems
  • Consumer electronics with removable SD storage

FAQ: Why Source the MAX14502AETL+T from Component Sense?

Here are the most common questions procurement teams ask when sourcing the Maxim Integrated MAX14502AETL+T:

Are the components brand new and fully traceable?

Yes. All our stock is brand new, unused, and fully traceable back to tier-one OEM or EMS partners. We don’t deal in refurbished parts.

How does Component Sense ensure the authenticity of its components?

Every component undergoes our inspection process, developed in collaboration with leading Scottish universities. We guarantee form, fit, and function, and include a 12-month warranty.

Do you stock other components?

We hold over $1 billion worth of excess and obsolete inventory, updated regularly so you can source parts quickly and keep production moving.

Our inventory is available for browsing here.



How quickly can you ship the MAX14502AETL+T?

This part ships from the UK, with same-day dispatch available. We also aim to provide quotes within an hour and maintain an on-time delivery rate of 95%+.



Does Component Sense support sustainable purchasing?

Yes. By redistributing excess components, we help reduce electronic waste and extend component lifespans. Also, we plant two trees to support global reforestation efforts.

Why should I source the MAX14502AETL+T from Component Sense?

Because you get traceable, reliable components quickly, without the usual sourcing risk. When you need the MAX14502AETL+T, we make the process seamless: we only carry trusted inventory, we guarantee fast delivery, and by purchasing brand-new excess parts, you are sourcing sustainably.
