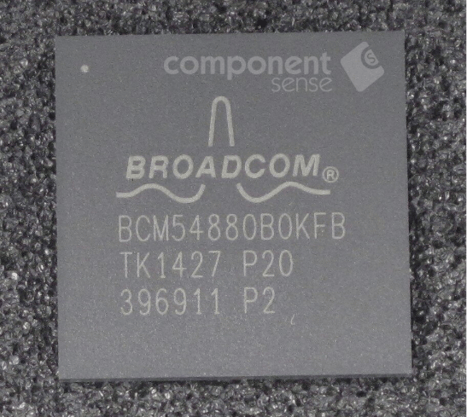

The BCM54880B0KFB from Broadcom is a high-performance 8-port Gigabit Ethernet transceiver that combines eight 10/100/1000BASE-T and BroadR-Reach™ PHYs on a single, power-efficient 65 nm CMOS chip. It’s designed for compact, high-density networking equipment, offering extended cable reach, low power consumption, and full IEEE Ethernet compliance in one integrated solution.
As part of Broadcom’s BroadR-Reach™ family, this transceiver extends Ethernet connectivity far beyond standard limits. It supports data transmission over both twisted-pair and coaxial cables for distances of up to 1,000 meters, depending on the cable type and quality.
This makes it an excellent choice for switches, broadband access systems, and industrial IP networks that need dependable, high-speed connections across larger areas.
Let’s take a closer look at what makes this 8-port transceiver a reliable choice for modern Ethernet infrastructure.
Key Features of the BCM54880B0KFB
Eight Integrated GbE Transceivers
Combines eight 10/100/1000BASE-T and BroadR-Reach™ ports on one chip to simplify system design and reduce BOM cost.
Extended-Reach BroadR-Reach™ Technology
Delivers 10 Mbps and 100 Mbps full-duplex operation over one, two, or four twisted pairs up to 1000 m, and standard 100 m Gigabit Ethernet on CAT5.
Flexible Media Compatibility
Operates across unshielded twisted-pair or coaxial cables, expanding network reach for applications such as FTTC/FTTB, VoIP, and IP surveillance.
Standards Compliance
Fully supports IEEE 802.3, 802.3u, and 802.3ab, ensuring interoperability with standard Ethernet devices.
Built-In Cable Diagnostics
Features CableChecker™ diagnostics for real-time detection of cable length and impairments.
Low Power and EMI Performance
Fabricated on a 65 nm CMOS process, optimising energy use and minimising noise emissions.
Seamless Integration
Includes SGMII and SerDes MAC interfaces, internal terminations, LED drivers, and advanced loopback modes for system testing.
High Reliability
Offers CESD protection, JTAG/AC-JTAG boundary scan, and jumbo packet support for demanding network applications.
Applications of the BCM54880B0KFB
The BCM54880B0KFB is ideal for:
- Enterprise and SMB Ethernet switches
- Broadband access and carrier-grade equipment
- Industrial and extended-reach Ethernet networks
- IP-based security and surveillance systems
- Power-over-Ethernet (PoE) enabled devices
